598G/599G DC Drive External Stack Controller

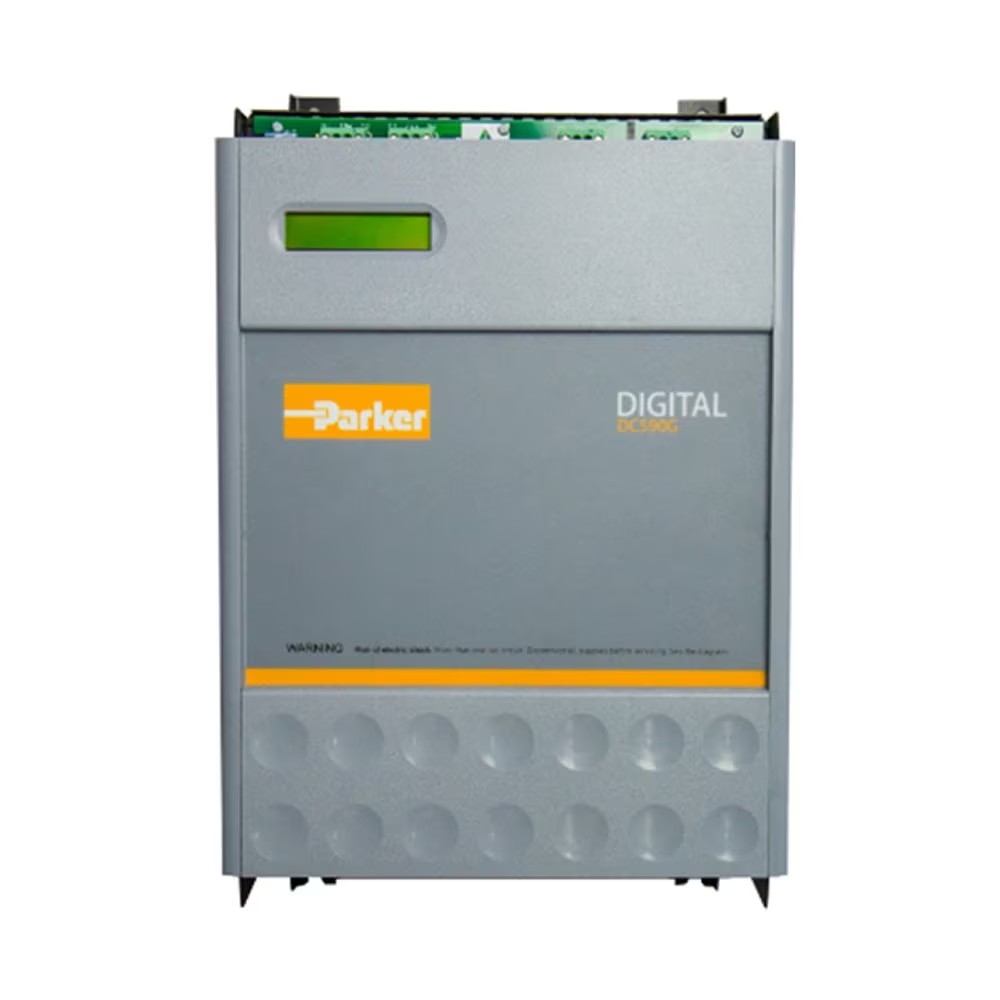

PARKER SSD 598G/599G DC Drive External Stack Controller 598G/1440/5/3/0/3/0/00

External Stack Controller-598G/599G could build up to 1440A External DC Drive in oneframe size. The equipment described is intended for an industrial (non-consumer) userfor the control of an external thyristor controlled bridge. The design assumes that a 2-phase field semi-controlled Rectifier Bridge and a fully controlled 3-phase Six PulseConverter exists, which is complete with Thyristor Suppression, Current FeedbackTemperature Monitoring and suitable fusing.

The External Stack Controller Module provides:Thyristor Firing Signals and Pulse TransformersField Power Thyristor Firing Signals and Pulse TransformersACCT Feedback Rectification and Scaling

Field CT Feedback Rectification and Scaling

·Armature Voltage Feedback Interface

·Field Voltage Feedback Interface

Mains Present Monitoring

Heatsink Over-temperature Input

All Standard 590C I/O Terminations

Feedback Technology:Armature Voltage

Brand: Parker

Drive Type: Four Quadrant / Regenerative

Product Type: DC Drive

Drive Axis Type: Single Axis Technology

Product Series: DC598G

Input Voltage: 3*220-500VAC

Continuous Output Current Rating: up to 1440A (supplied by external thyristor power stack)

Output Power: -

Compatible Motor Type: DC Brushed Servo

Compatible Feedback Device: Armature Voltage

Modes of Control: Four Quadrant / Regenerative

Communication Interface: n/a

Operating Temperature: 0 - 55 °C, 32 - 131 °F

Operating Altitude: n/a

Overload Rating: n/a

Specifications Met:-
