598G/599G DC Drive External Stack Controller

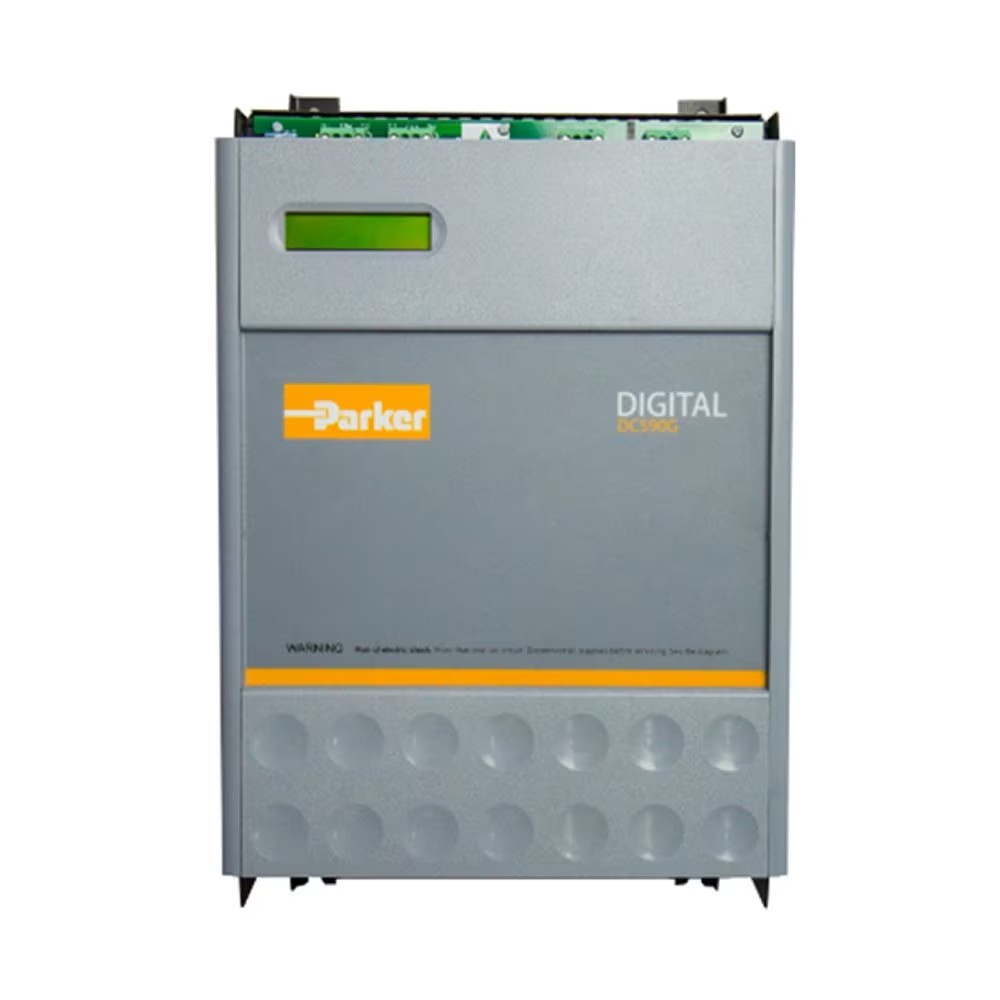

PARKER SSD 598G/599G DC Drive External Stack Controller 598G/1440/5/3/0/0/0/00
External Stack Controller-598G/599G could build up to 1440A External DC Drive in oneframe size. The equipment described is intended for an industrial (non-consumer) userfor the control of an external thyristor controlled bridge. The design assumes that a 2-phase field semi-controlled Rectifier Bridge and a fully controlled 3-phase Six PulseConverter exists, which is complete with Thyristor Suppression, Current FeedbackTemperature Monitoring and suitable fusing.
The External Stack Controller Module provides:Thyristor Firing Signals and Pulse TransformersField Power Thyristor Firing Signals and Pulse TransformersACCT Feedback Rectification and Scaling
Field CT Feedback Rectification and Scaling
·Armature Voltage Feedback Interface
·Field Voltage Feedback Interface
Mains Present Monitoring
Heatsink Over-temperature Input
All Standard 590C I/O Terminations
Feedback Technology:Armature Voltage
Brand: Parker
Drive Type: Four Quadrant / Regenerative
Product Type: DC Drive
Drive Axis Type: Single Axis Technology
Product Series: DC598G
Input Voltage: 3*220-500VAC
Continuous Output Current Rating: up to 1440A (supplied by external thyristor power stack)
Output Power: -
Compatible Motor Type: DC Brushed Servo
Compatible Feedback Device: Armature Voltage
Modes of Control: Four Quadrant / Regenerative
Communication Interface: n/a
Operating Temperature: 0 - 55 °C, 32 - 131 °F
Operating Altitude: n/a
Overload Rating: n/a
Specifications Met:-
Products | Modes of Control | Input Voltage | Output Current Rating | Aux Supply Input Voltage | Option Board Type | Speed Feedback Type | Keypad/User Interface Option |
598P-53260010-AP00-U4V0 | Stack Controller / Regenerative | 3*220-500VAC | 60A(Field) | 1*115/230VAC | Amplifier | Armature Voltage | 6901 keypad fitted |
598P-53260010-TP00-U4A0 | Stack Controller / Regenerative | 3*220-500VAC | 60A(Field) | 1*115/230VAC | Trigger | Analog Tacho | 6901 keypad fitted |
598P-53260010-TP00-U4V0 | Stack Controller / Regenerative | 3*220-500VAC | 60A(Field) | 1*115/230VAC | Trigger | Armature Voltage | 6901 keypad fitted |
598P-53312011-TP00-U4V0 | Stack Controller / Regenerative | 3*220-500VAC | 120A(Field) | 1*115VAC | Trigger | Armature Voltage | 6901 keypad fitted |
598P-53312012-TP00-U4V0 | Stack Controller / Regenerative | 3*220-500VAC | 120A(Field) | 1*230VAC | Trigger | Armature Voltage | 6901 keypad fitted |
598P-73260010-AP00-U4V0 | Stack Controller / Regenerative | 3*380-690VAC | 60A(Field) | 1*115/230VAC | Amplifier | Armature Voltage | 6901 keypad fitted |
598P-73260010-TP00-U4V0 | Stack Controller / Regenerative | 3*380-690VAC | 60A(Field) | 1*115/230VAC | Trigger | Armature Voltage | 6901 keypad fitted |
598P-73312012-AP00-U4V0 | Stack Controller / Regenerative | 3*380-690VAC | 120A(Field) | 1*230VAC | Amplifier | Armature Voltage | 6901 keypad fitted |
599P-53260010-TP00-U4A0 | Stack Controller / Non-Regenerative | 3*220-500VAC | 60A(Field) | 1*115/230VAC | Trigger | Analog Tacho | 6901 keypad fitted |
599P-53260010-TP00-U4V0 | Stack Controller / Non-Regenerative | 3*220-500VAC | 60A(Field) | 1*115/230VAC | Trigger | Armature Voltage | 6901 keypad fitted |
599P-53260010-TP00-U4W0 | Stack Controller / Non-Regenerative | 3*220-500VAC | 60A(Field) | 1*115/230VAC | Trigger | Wire-ended Encoder | 6901 keypad fitted |
599P-73260010-AP00-U4V0 | Stack Controller / Non-Regenerative | 3*380-690VAC | 60A(Field) | 1*115/230VAC | Amplifier | Armature Voltage | 6901 keypad fitted |
599P-73260010-TP00-U4V0 | Stack Controller / Non-Regenerative | 3*380-690VAC | 60A(Field) | 1*115/230VAC | Trigger | Armature Voltage | 6901 keypad fitted |
