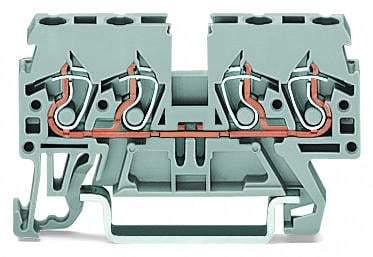

WAGO 870-832 4-conductor through terminal block; 2.5 mm²; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; 2,50 mm²; orange

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO 870-832 4-conductor through terminal block; 2.5 mm²; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; 2,50 mm²; orange

Directions

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-1

Nominal voltage (III/3) 500V

Rated surge voltage (III/3) 6kV

Rated current 24A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection data

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5 mm² / 28 … 12 AWG

Fine-stranded conductor 0.08 … 4 mm² / 28 … 12 AWG

Physical data

Width 5 mm / 0.197 inch

Height 55 mm / 2.165 inch

Depth from upper edge of DIN-rail 27.5 mm / 1.083 inch

Mechanical data

Design horizontal type

Mounting type DIN-35 rail

Marking level Side marking

Material data

Note on material data Information on material data can be found here

Color orange

Insulation material Polyamide (PA66)

Flammability class per UL94 V0

Fire load 0.121MJ
