WAGO 2002-6304 3-conductor through terminal block; 2.5 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; 2,50 mm²; blue

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

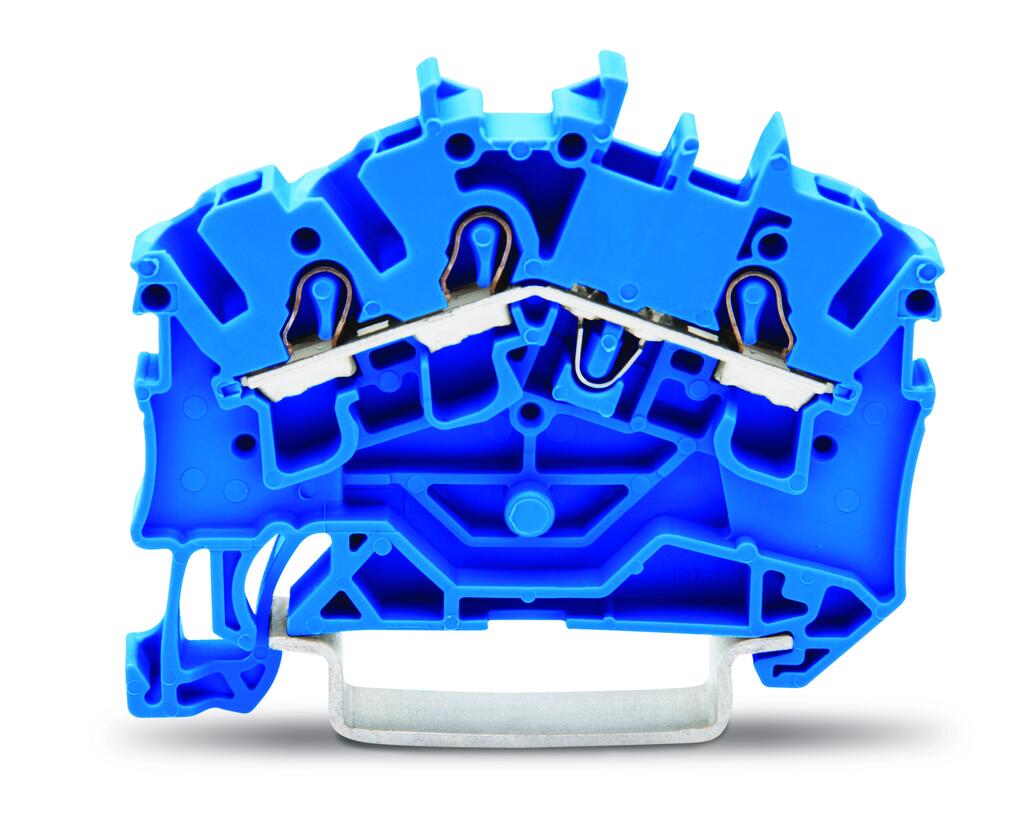

Product Name : WAGO 2002-6304 3-conductor through terminal block; 2.5 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; 2,50 mm²; blue

Directions

Notes

Safety information 1 An end plate must be applied when changing from a 3-conductor terminal block to a 4-conductor terminal block and vice versa.

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-1

Nominal voltage (III/3) 800V

Rated surge voltage (III/3) 8kV

Rated current 24A

Rated current 2 32A

Ratings per UL

Approvals per UL 1059

Rated voltage UL (Use Group B) 600V

Rated current UL (Use Group B) 20A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 20A

Ratings per CSA

Approvals per C22.2 No 158

Rated voltage CSA (Use Group B) 600V

Rated current CSA (Use Group B) 20A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 20A
