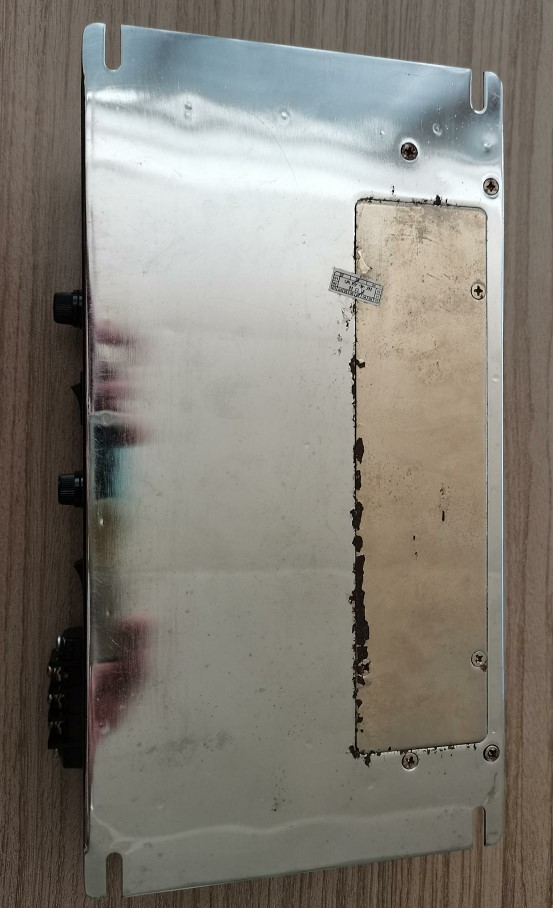

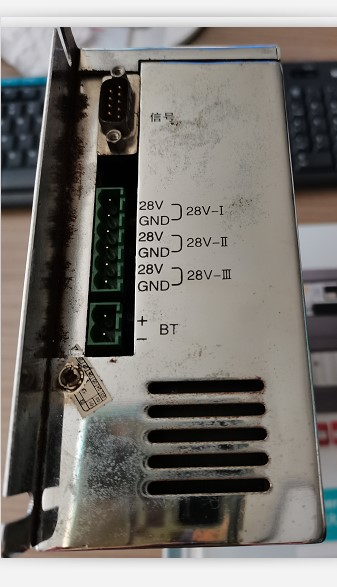

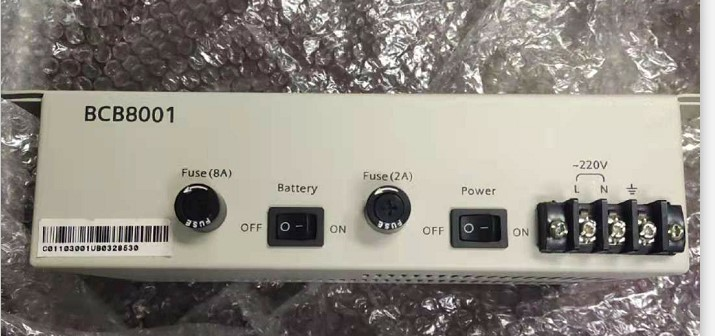

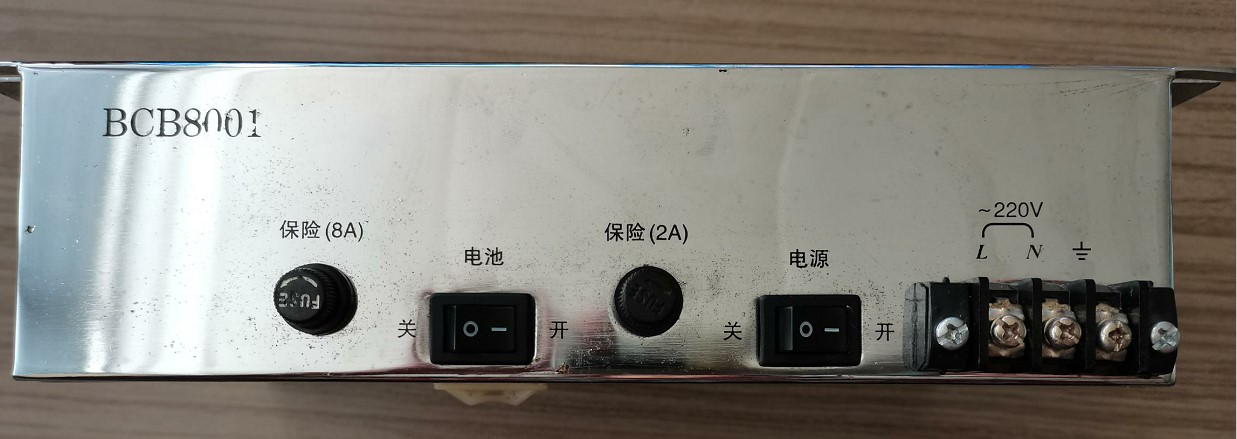

BCB8001 Wall-mounted Power Supply (8A)
Input voltage 220 VAC / 50HZ
187... 242 VAC (Effective)
Output voltage 20... 28 VDC / 8 A (Main power working)
24 VDC (Only battery working)
Operating temperature -10... 50 °C
Relative humidity 95 % Rh
Protection Output 8.0 * 110 % (Over current protection)
Output 1.0 Ω (Output short protection)
Voltage <20.0 V (Battery low protection)
Battery CB12170 (12 V / 17 AH)‚
CB12250 (12 V / 25 AH)‚
CB12380 (12 V / 38 AH)‚
DJW (12 V / 24 AH)‚
DJW (12 V / 38 AH)‚
NP (12 V / 24 AH)‚
NP (12 V / 38 AH)
