Part No: 590DC-00-000 (590DC/00/000, AH463179U001 or AH385356U001)
Description:

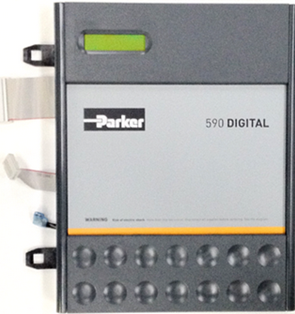

Parker SSD Drives Main Control Board/Card (Door) for Customer calibrated 590C/591C Drives. Can also be used on old (Grey) 590 drives with factory calibration cards installed – these cards usually have soldered resistors.
This is for the Grey coloured Eurotherm Drives 590 DC Thyristor Drive Controller. This easily upgrades 590C Digital Doors V4.2 (AH385356U001)
Latest version is 9.0. This board has the customer calibration armature and field dials built into the board. This replaces earlier versions that used a switchable calibration plug-in board part number: AH3854757U001.
Easily connects with the 590 Stack via pop-out Hinges and push-in ribbon cables.
Door does not include Analogue Tacho Feedback board, this should be ordered seperately. the part number for this board is LA464537 or AH500935U001 (Used to be AH385870U001).
If replacing a faulty digital control board, you can extract the old confuguration from the old door and install the config into the new door to clone the faulty drive. You do this using the DSE Lite Software, for any questions about this please contact us and we'll provide you with more information.
Manufacturer’s part number is 590DC-00-000
Marked AH463179U001
Replaces the now obsolete card - reference AH385356U001.
Replaces the now obsolete card - reference AH385457U001.
Packed weight is 1.5kg in 41cm x 31cm x 9cm
Tariff Code is 85371091
