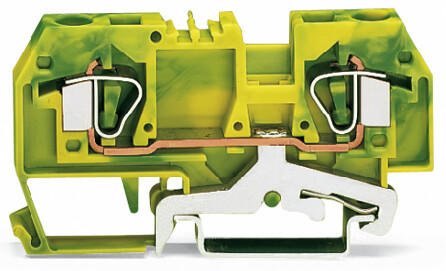

WAGO 282-907, 2-conductor ground terminal block; 6 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 6,00 mm²; green-yellow

WAGO 812-104 Busbar terminal block; for (10 x 3) mm busbars; 12-pole; without push-buttons; 4 mm²; 4,00 mm²; blue

Product Name : WAGO 282-907, 2-conductor ground terminal block; 6 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 6,00 mm²; green-yellow

Directions

Electrical data
IEC Approvals
Ratings per	IEC/EN 60947-7-2
Connection data
Connection technology	CAGE CLAMP®
Actuation type	Operating tool
Connectable conductor materials	Copper
Solid conductor	0.2 … 6 mm² / 24 … 10 AWG
Fine-stranded conductor	0.2 … 6 mm² / 24 … 10 AWG
Strip length	12 … 13 mm / 0.47 … 0.51 inch
Total number of connection points	2
Total number of potentials	1
Number of levels	1
Wiring type	Front-entry wiring
More

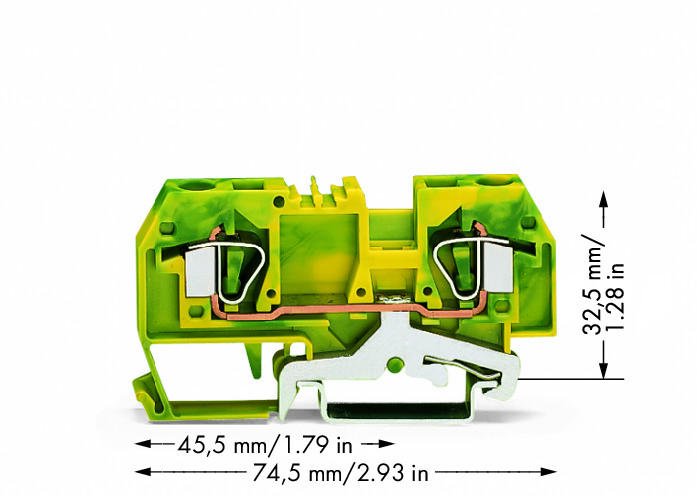

Physical data
Width	8 mm / 0.315 inch
Height	74.5 mm / 2.933 inch
Depth from upper edge of DIN-rail	32.5 mm / 1.28 inch
Mechanical data
Design	horizontal type
Mounting type	DIN-35 rail
Marking level	Center marking
Material data
Color	green-yellow
Insulation material	Polyamide (PA66)
Fire load	0.247 MJ
Weight	22 g
